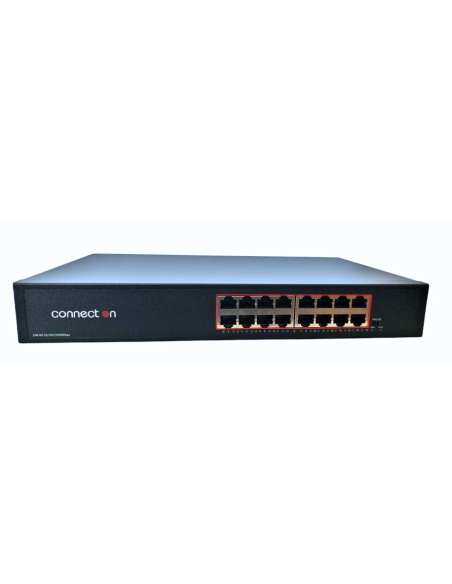

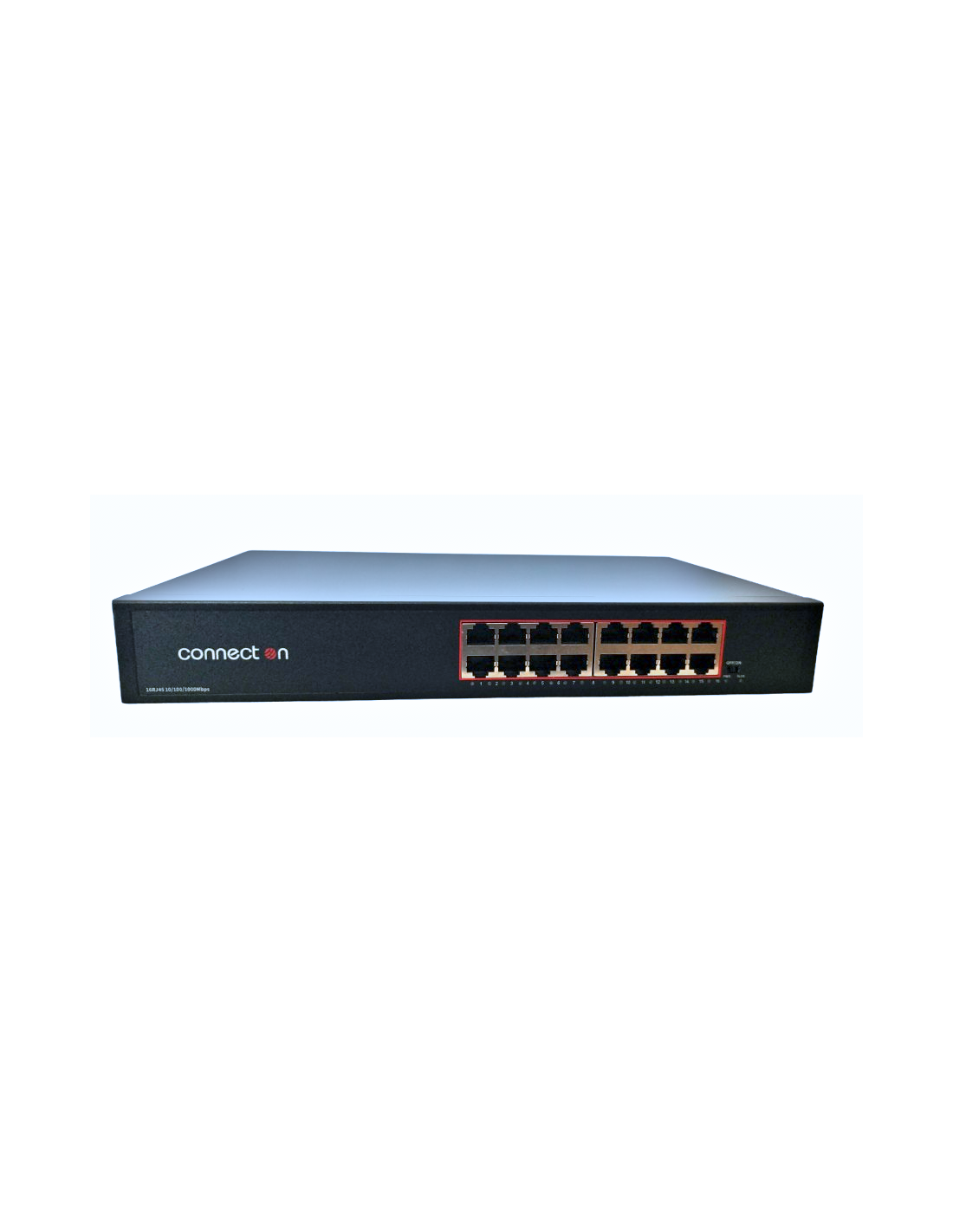

Суич Connect On 16-port 10/100/1000Mbps, неуправляем, Rackmount
Суич Connect On 16-port 10/100/1000Mbps, неуправляем, Rackmount

Суич Connect On 16-port 10/100/1000Mbps, неуправляем, Rackmount

ConnectON
Последни бройки в наличност
68,10 €

133,15 лв. с ДДС
с ДДС
Ø 16*1000M Ethernet port with auto-negotiation function Ø Support 1000M speed rate,MDI/MDIX Ø Support IEEE802.3x Flow control and back pressure control Ø Each port has the complete LED Indicator light Ø Support IEEE802.1d Spanning Tree Ø Each port supports wire-speed switching ,64~1518 frame length can reach the wire speed Ø Support high performance QoS function on each port Ø Support multicast to avoid network congestion Ø Support 4K lightning protection of each port Ø Require no configuration and will instantly operate as soon as you power it up Ø Use low-power consumption chips,only 2.5W in full load conditions Standards IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree Certifications CCC,



Ø  16*1000M Ethernet port with auto-negotiation function

Ø  Support 1000M speed rate,MDI/MDIX

Ø  Support IEEE802.3x Flow control and back pressure control

Ø  Each port has the complete LED Indicator light

Ø  Support IEEE802.1d Spanning Tree

Ø  Each port supports wire-speed switching ,64~1518 frame length can reach the wire speed

Ø  Support high performance QoS function on each port

Ø  Support multicast to avoid network congestion

Ø  Support 4K lightning protection of each port

Ø  Require no configuration and will instantly operate as soon as you power it up

Ø  Use low-power consumption chips,only 2.5W in full load conditions


  Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3x Flow control

IEEE802.1p QoS

IEEE802.1d Spanning Tree

Certifications

CCC, CE

Ethernet Port

Ø  Connector: RJ45

Ø  Data Rate: 10/100/1000M

Ø  Distance: 100m

Ø  UTP Type: UTP-5E or higher level

Performance

Ø  Processing Type: Store and Forward

Ø  Transmission Mode: half/full-duplex with auto-negotiation function

Ø  MAC Table Size: 2K

Ø  Buffer Space: 448K

Ø  Back bandwidth: 32G

Ø  Time Delay: 150μs

Power

Ø  Power type: build-in power supply

Ø  Input Voltage: AC100V240V  50/60Hz

Environment

Ø  Storage Temperature: -4070

Ø  Operating Temperature: -1055

Ø  Relative Humidity: 5-90% ( no condensation)

Physical Characteristics

Ø  Dimension: 312×185×46mm

Ø  Weight: 1.5kg

Ø  Color: Metal, Black


Брой портове
16
PoE
Non POE
Управляем
Не
67000
