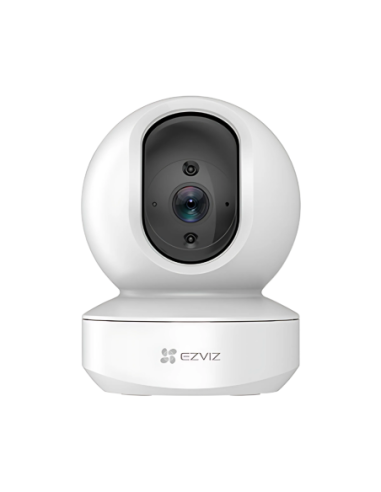

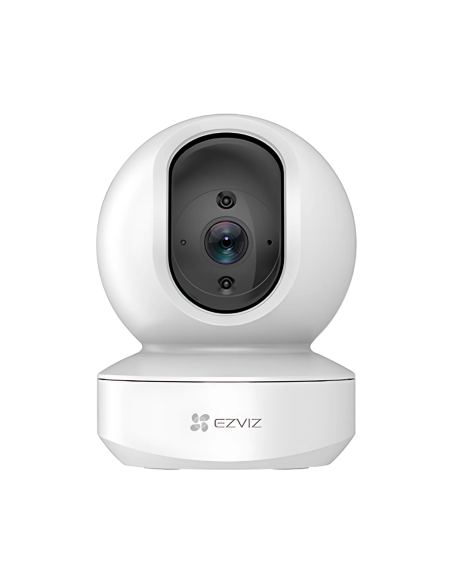

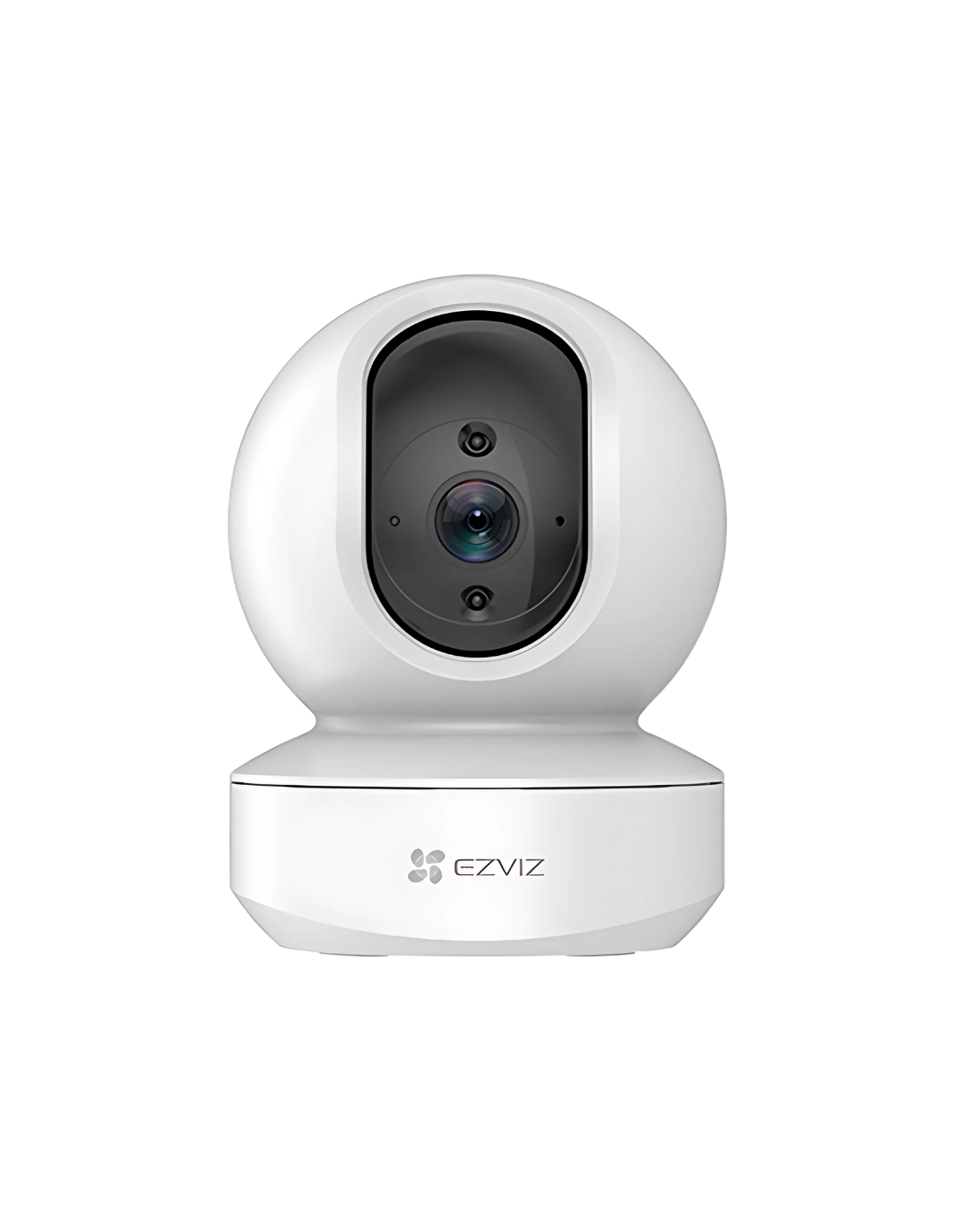

EZVIZ CS-TY1, W1 4MP Smart Wi-Fi Pan+Tilt Камера

Specifications

Model CS-TY1-C0-8B4WF

Camera

Image sensor F2.2@1/3" Progressive Scan CMOS

Shutter Speed Self-adaptive shutter

Lens 4mm, view angle: 124°(Diagonal), 85° (Horizontal), 55°(Vertical)

Lens Mount M12

Day & Night IR-cut filter with auto-switching

DNR 3D DNR

WDR Digital WDR

Compression

Video Compression H.265 / H.264

Video Bit Rate Quad HD, Full HD, HD, Standard.Adaptive bit rate.


Max. Resolution 2560 × 1440

Frame Rate Max. 20 fps; Self-Adaptive during network transmission

Network

Smart Alarm Human Motion detection

Wi-Fi Pairing AP pairing

Protocol EZVIZ cloud proprietary protocol

Interface Protocol EZVIZ cloud proprietary protocol

Interface

Storage Micro SD card slot (Max. 256G)

Power Micro USB

Wired Network RJ45 × 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

Standard IEEE802.11b, 802.11g, 802.11n

Frequency Range 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Supports 20MHz

Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps

Output Power(EIRP) 19 dBm

Antenna Gain 1.9 dBi

General

Operating Conditions -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)

Power Supply DC 5V/2A

Power Consumption Max. 5W

IR Range Max. 10 m (32.81 ft)

Dimensions 88 × 88 × 119 mm (3.46 × 3.46 × 4.67 inch)

Packaging Dimensions 103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch)

Bare Weight 259g (9.14oz)

In the box:

- TY1 4MP Camera

- Base

- Screw Kit

- Power Cable 3m (9.8 ft.)

- Drill Template

- Power Adapter

- Quick Start Guide

- Regulatory Information
