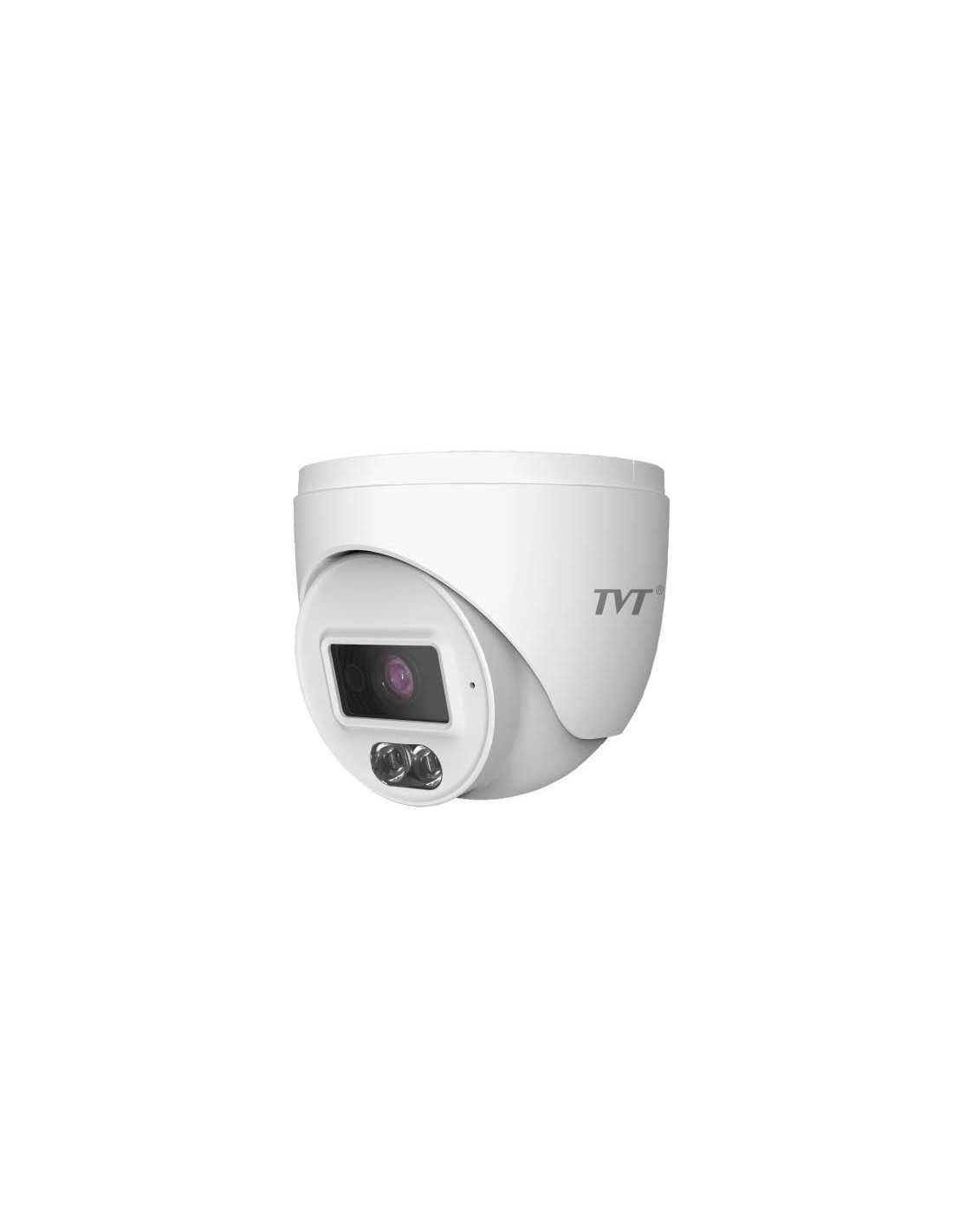

Камера TVT IPC 2MP POE only no DC TD-9520S4L-D(D/PN/AW1), Turret
TVT Последни бройки в наличност
27,00 €
с ДДС
FeaturesH.265+ /H.265 /H.264+ /H.264/MJPEG codingMax. resolution: 2MP (1920 × 1080)Auto day/night switch3D DNR, WDR, HLC, BLC, etc.ROI coding10~20m white light view distance; 10~20m IR view distancePoE power supplyIP 67 ingress protectionSupport dual streamsSupport remote monitoring by smart phones& tablet PCs with iOS and Android OSSupport line crossing detection, region intrusion detection and video exception detectionSpecificationModelTD-9520S4L-DCameraImage Sensor1 / 3" CMOSImage Size1920×1080Electronic Shutter1 / 3s ~ 1 / 100000sIris TypeFixed IrisMin. Illumination0.0462 lux @F2.2, AGC ON; 0 lux (Illumination on)Lens2.8mm@F2.2, Horizontal FoV: 93°;Vertical FoV:52°; Diagonal FoV:106° 3.6mm@F2.2, Horizontal FoV:74°; Vertical FoV:40°; Diagonal FoV:
Features
H.265+ /H.265 /H.264+ /H.264/MJPEG coding
Max. resolution: 2MP (1920 × 1080)
Auto day/night switch
3D DNR, WDR, HLC, BLC, etc.
ROI coding
10~20m white light view distance; 10~20m IR view distance
PoE power supply
IP 67 ingress protection
Support dual streams
Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
Support line crossing detection, region intrusion detection and video exception detection
Specification
| Model | TD-9520S4L-D | |||
| Camera | ||||
| Image Sensor | 1 / 3" CMOS | |||
| Image Size | 1920×1080 | |||
| Electronic Shutter | 1 / 3s ~ 1 / 100000s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.0462 lux @F2.2, AGC ON; 0 lux (Illumination on) | |||
| Lens | 2.8mm@F2.2, Horizontal FoV: 93°;Vertical FoV:52°; Diagonal FoV:106° 3.6mm@F2.2, Horizontal FoV:74°; Vertical FoV:40°; Diagonal FoV:85° | |||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Day&Night | ICR | |||
| Wide Dynamic Range | Digital WDR | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | Yes | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 44m(144ft) | 18m(59ft) | 9m(30ft) | 4m(13ft) |
| 3.6mm | 59m(194ft) | 24m(79ft) | 12m(39ft) | 6m(20ft) |
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264 + / H.264 Sub stream: H.265+ / H.265 / H.264 + / H.264 | |||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
| Resolution | 1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), 640×360,480×240, CIF | |||
| Main Stream | 1080P/720P (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Sub Stream | D1/VGA/640× 360/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Bit Rate | 64 Kbps ~ 3 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A/U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ45 | |||
| Video Output | No | |||
| Audio | 1CH built-in MIC | |||
| Storage | No | |||
| Reset | No | |||
| Functions | ||||
| Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP | |||
| Web Browser | IE 11 (plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, DDNS, NTP, SNMP, RTSP, 802.1x, UPnP, SMTP, FTP, HTTP, HTTPS, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage | |||
| Motion Detection | Yes | |||
| Smart Event | Region intrusion detection, line crossing detection, video exception (scene change, video blur and abnormal color detection) | |||
| General Function | Watermark, video mask, heartbeat | |||
| Security | Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP | |||
| PoE | Yes, IEEE802.3af | |||
| Supplement Light Range | IR range: 10 ~ 20 m; white light range:10 ~ 20 m | |||
| Ingress Protection | IP67 | |||
| Others | ||||
| Power Supply | PoE power supply | |||
| Power Consumption | < 5W | |||
| Operating Environment | - 20 °C ~ 55 °C (-4°F~131°F); Humidity: less than 95 % (non-condensing) | |||
| Storage Environment | - 20 °C ~ 60°C (-4°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions (mm) | Φ 94.8 × 82.8 | |||
| Weight (net) | Approx. 0.27KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH(EC1907/2006) | |||
- Резолюция
- 2MP
- Микрофон
- Вграден микрофон
- Camera Power
- POE
- Camera Product Line
- Full Color Series
- Infrared
- IR 10-20m
- Lens
- 2.8mm
- Вид камера 2
- Turret
- Вид камера
- IPC
- Технологии
- Dual Light
