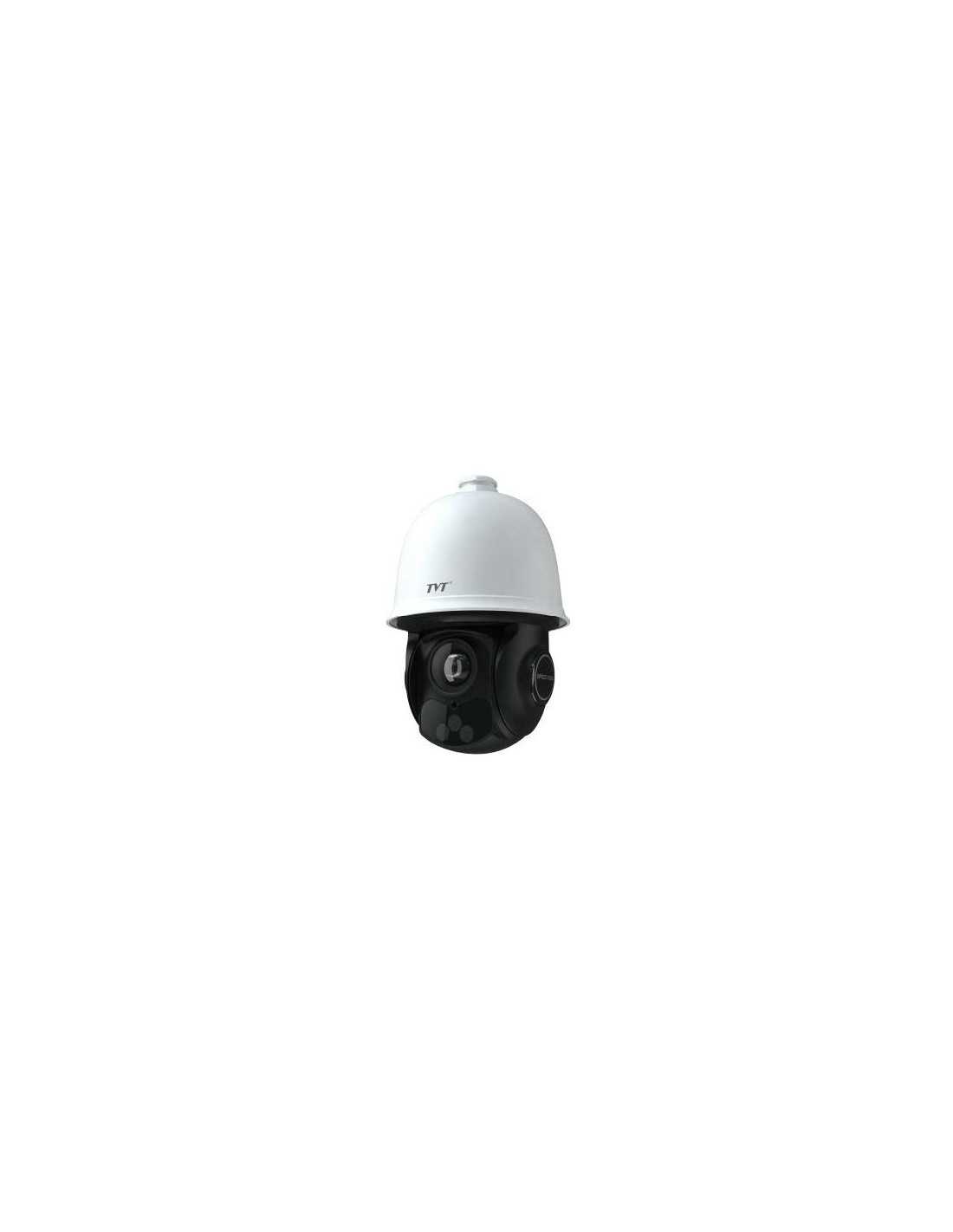

Камера TVT IPC 2MP TD-8523IE(PE/32M/AR15) 32X PTZ

Name: Камера TVT IPC 2MP TD-8523IE(PE/32M/AR15) 32X PTZ
Brand: TVT
SKU: 66769
Price: 703.74 EUR
Availability: InStock

Марка: TVT

Последни бройки в наличност

703,74 €

1375,86 лв. с ДДС

с ДДС

Features1/2.8″ progressive scan CMOSUp to 1920×1080 resolutionMini illumination: Color: 0.005 lux @ (F1.6 AGC ON) B/W: 0.001 lux@ (F1.6 AGC ON) 0 Lux with IR32x optical zoom, 16x digital zoom120 dB WDR, 3D DNR, Smart IRSmart IR up to 150m IR distanceSmart H.265, only 128Kbps stream at 1080P0.5Tops Deep-learning Engine, Dual Cortex-A12Smart tracking of human/vehicleSmart detection and perimeter protectionIP66, -30°C~60°C, Aluminum Alloy &PlasticPoE+, DC24V or AC24V power supply optionsONVIF, API and SDK Module TD-8523IE System Hi3516CV500,8Gb LPDDR3, 2Gb SPI Flash Image sensor 1/2.8″ progressive scan CMOS, (SONY IMX462) Mini. Illumination Color 0.005Lux @ (F1.65 AGC ON) B/W 0.001Lux @(F1.65 AGC ON);0Lux with IR Image setting Flip, Mirror, Saturation,

Описание
Детайли за продукта

Features

1/2.8″ progressive scan CMOS

Up to 1920×1080 resolution

Mini illumination:

Color: 0.005 lux @ (F1.6 AGC ON)

B/W: 0.001 lux@ (F1.6 AGC ON)

0 Lux with IR

32x optical zoom, 16x digital zoom

120 dB WDR, 3D DNR, Smart IR

Smart IR up to 150m IR distance

Smart H.265, only 128Kbps stream at 1080P

0.5Tops Deep-learning Engine, Dual Cortex-A12

Smart tracking of human/vehicle

Smart detection and perimeter protection

IP66, -30°C~60°C, Aluminum Alloy &Plastic

PoE+, DC24V or AC24V power supply options

ONVIF, API and SDK

Module	TD-8523IE
System	Hi3516CV500,8Gb LPDDR3, 2Gb SPI Flash
Image sensor	1/2.8″ progressive scan CMOS, (SONY IMX462)
Mini. Illumination	Color 0.005Lux @ (F1.65 AGC ON) B/W 0.001Lux @(F1.65 AGC ON);0Lux with IR
Image setting	Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, and AWB adjusted by client software/browser
Shutter Speed	1/1 s – 1/10,000 s
White Balance	Auto/Manual/Indoor/Outdoor
Gain	Auto/Manual
Day & Night	IR Cut filter
Digital Zoom	16x
Privacy Mask	4 Programmable privacy masks
3D DNR	Auto/Manual
BLC	Yes
HLC	Yes
WDR	120 dB
Defog	Electronic
EIS	Yes
Regional Exposure	No
Picture overlay	Logo picture could be overlaid on video with 128x128pixels,24bits BMP format
Lens
Focus length	f=4.5-144mm lens,32x optical zoom
Zoom Speed	Approx.4.5s (optical zoom, wide-tele)
Field of View	Horizontal:60°to 2.3°(wide -tele); Vertical: 40.5°to 1.4°(wide -tele); Diagonal: 68°to 2.7°(wide -tele)
Working distance	wide: 1.0m ~ INF; tele: 1.5m ~ INF
Aperture Range	F1.65 ~ F4.4 (wide-tele)
PTZ
Pan Range	360°endless
Pan speed	Configurable, from 0.1~80°/s; Preset speed: 150°/s
Tilt Range	From -3°to 90°
Tilt Speed	Configurable, from 0.1°~ 80°/s, Preset speed: 120°/s
Proportional Zoom	Yes
Preset	360
Cruise	8 cruises, up to 16 presets for each cruises
Track	4 tracks, record time over 3 minutes for each track
Power off memory	Support
Action mode	Preset/Cruise/Trace/Auto Scan/Random Scan
3D Positioning	Support
PTZ Position Display	Support
Schedule Task	Preset/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot
IR
IR Distance	150m
Smart IR	Yes, support facial exposure
Network

Резолюция: 2MP
Микрофон: Вход за микрофон
Camera Power: POE
Storage: SD карта
Вид камера 2: PTZ
Вид камера: IPC
Технологии: StarLight

Референция 66769

На склад 1 Продукт
