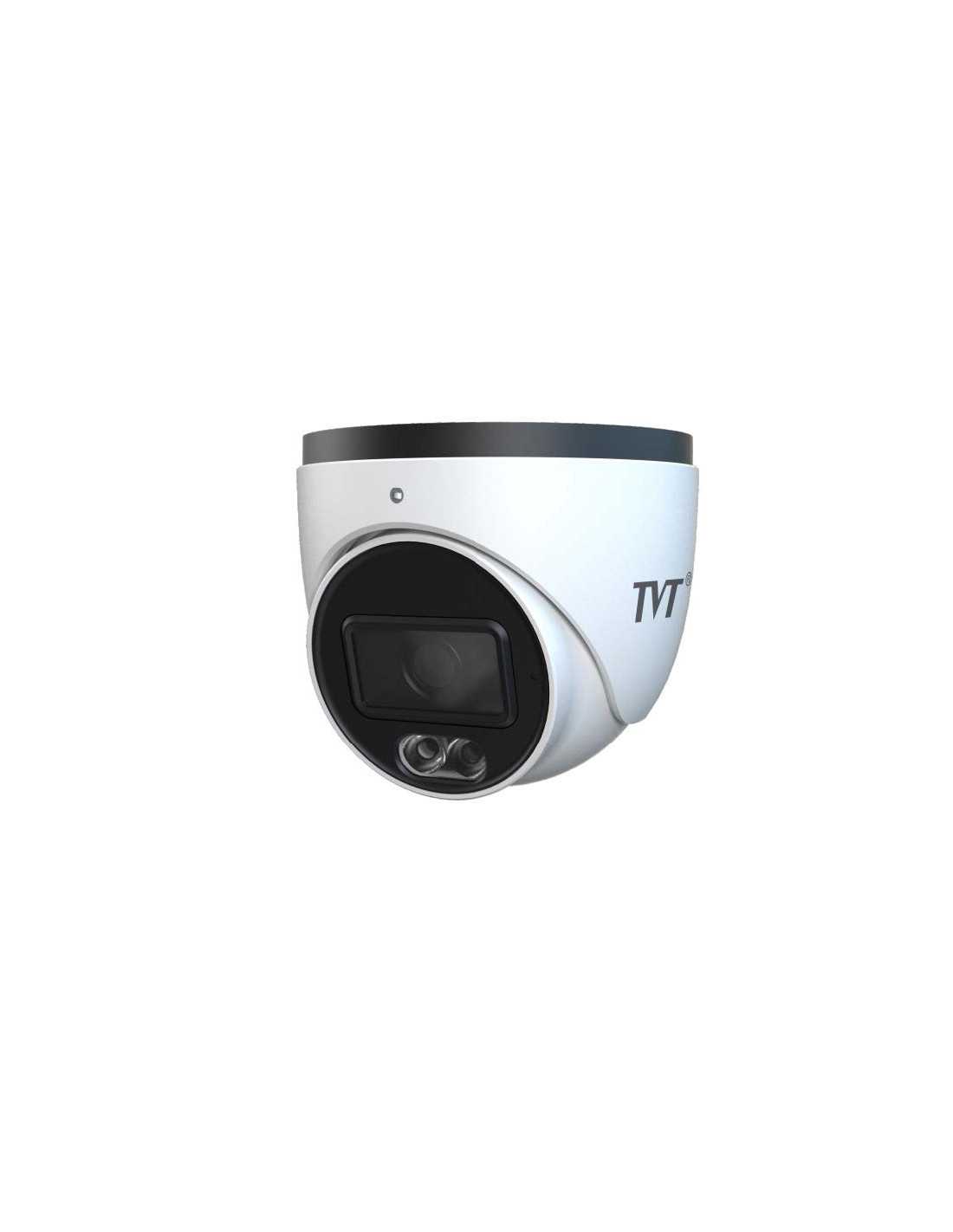

Камера TVT IPC 4MP Full color TD-9544S4-C(D/PE/AW2), Turret

Name: Камера TVT IPC 4MP Full color TD-9544S4-C(D/PE/AW2), Turret
Brand: TVT
SKU: 66756
Price: 78.53 EUR
Availability: OutOfStock

Марка: TVT

Изчерпана наличност

78,53 €

с ДДС

FeaturesH.265+ /H.265 /H.264+ /H.264/MJPEG codingMax. resolution: 4MP (2560 × 1440)Fixed Lens：2.8mmAuto day/night switch3D DNR, HWDR, HLC, BLC, etc.ROI codingSupport smart supplement light20~30m white light view distance; 20~30m IR view distanceDC12V/PoE power supplyIP 67 ingress protectionSupport three streamsSupport remote monitoring by smart phones& tablet PCs with iOS and Android OSSupport P2P functionSupport SMDSupport line crossing detection, region intrusion detection,abandoned/missing object detection, video exception detectionSpecificationModelTD-9544S4-CCameraImage Sensor1 / 3 "CMOSImage Size2560×1440Electronic Shutter1/1s ~ 1 / 100000sIris TypeFixed IrisMin. Illumination0.005 lux @F1.6, AGC ON; 0 lux with illumination onLens2.8mm@F1.6, Hor

Model	TD-9544S4-C
Camera
Image Sensor	1 / 3 "CMOS
Image Size	2560×1440
Electronic Shutter	1/1s ~ 1 / 100000s
Iris Type	Fixed Iris
Min. Illumination	0.005 lux @F1.6, AGC ON; 0 lux with illumination on
Lens	2.8mm@F1.6, Horizontal FoV: 94°;Vertical FoV:50°;Diagonal FoV:115°
		Focus	Fixed
Lens Mount	M12
Day&Night	ICR
Wide Dynamic Range	120dB
BLC	Yes
HLC	Yes
Digital NR	Yes
S/N Ratio	≥50dB
Angle Adjustment	Pan: 0°~360°; Tilt:0°~75°;Rotation: 0°~360°
Video Compression	Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264/ MJPEG
		H.265 Compression Standard	Main Profile@Leve4.1 High Tier
		Resolution	4MP (2560×1440 ), 3MP (2304×1296 ),1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, VGA (640 × 480), CIF, 480 × 240
Main Stream	60Hz:4MP/3MP/1080P/720P(1~30fps); 50Hz:4MP/3MP/1080P/720P(1~25fps)
Sub Stream	60Hz : 720P/D1/VGA/CIF(1~30fps); 50Hz: 720P/D1/VGA/CIF (1~25fps)
Third Stream	60Hz: D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps)
Bit Rate	64 Kbps ~ 6 Mbps
Bit Rate Type	VBR / CBR
Image Settings	ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
		Audio Compression	G711A/U
ROI	Each ROI to be configured separately
Interfaces
Network	RJ45
Video Output	No
Audio	1CH audio input; 1CH built-in MIC
Storage	Built-in micro SD card slot, up to 256GB
Reset	Yes
Functions
Remote Monitoring	Web browser /TVT NVR/NVMS2.X/Mobile APP
Web Browser	IE (plug-in required)/Google Chrome/Edge/Firefox/Safari
Online Connection	Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS

Камера TVT IPC 4MP Full color TD-9544S4-C(D/PE/AW2), Turret

Features
