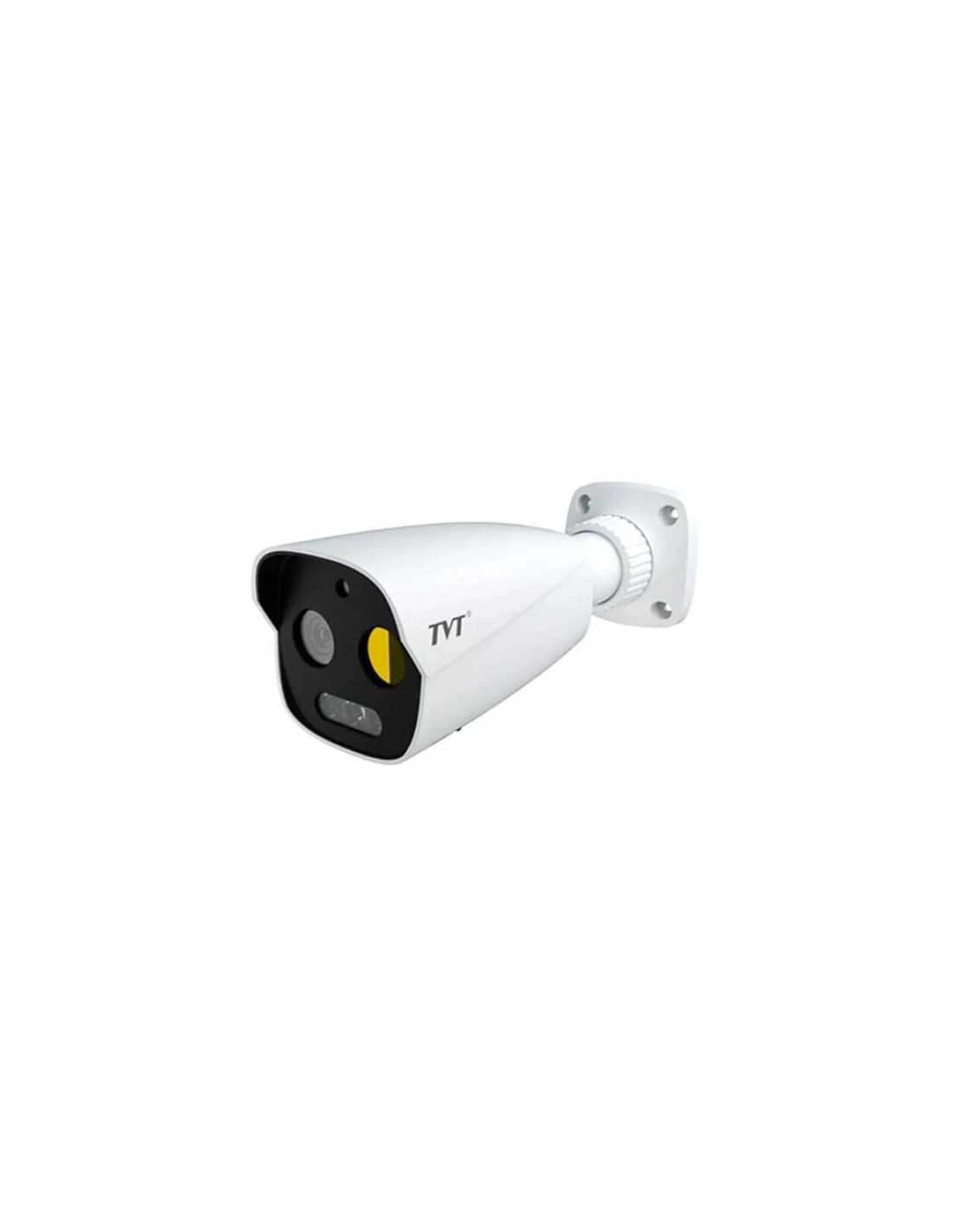

Камера TVT IPC 4MP Thermal TD-5422E1-VT1(3/PE), Bullet

Name: Камера TVT IPC 4MP Thermal TD-5422E1-VT1(3/PE), Bullet
Brand: TVT
SKU: 66767
Price: 527.65 EUR
Availability: InStock

Марка: TVT

Последни бройки в наличност

527,65 €

с ДДС

FeaturesThermal:Resolution: 256×19212μm，NETD: ≤50mK (@25°C, F#=1.0)Temperature range: -20°C~150°CMulti-palette: white hot, black hot, iron oxide red, rainbow, etc.Sound and light warning, temperature exception alarm, fire detectionIntelligent analytics: region intrusion/entrance/exiting (human/motor vehicle classification), line crossing detection (human/motor vehicle classification)Supports dual image fusionSupports temperature overlay on video streamOptical:5MP (2592 × 1944) @30 fpsICR auto switch, true day/night vision20~30m IR night view distance3D DNR, true WDR (120dB), HLC, BLC, Smart IR, distortion image correction, ROI etc.Intelligent analytics: region intrusion/entrance/exiting detection (human/motor vehicle/non-motor vehicle classification)

Описание
Детайли за продукта

Features

Thermal:

Resolution: 256×192

12μm，NETD: ≤50mK (@25°C, F#=1.0)

Temperature range: -20°C~150°C

Multi-palette: white hot, black hot, iron oxide red, rainbow, etc.

Sound and light warning, temperature exception alarm, fire detection

Intelligent analytics: region intrusion/entrance/exiting (human/motor vehicle classification), line crossing detection (human/motor vehicle classification)

Supports dual image fusion

Supports temperature overlay on video stream

Optical:

5MP (2592 × 1944) @30 fps

ICR auto switch, true day/night vision

20~30m IR night view distance

3D DNR, true WDR (120dB), HLC, BLC, Smart IR, distortion image correction, ROI etc.

Intelligent analytics: region intrusion/entrance/exiting detection (human/motor vehicle/non-motor vehicle classification), line crossing detection (human/motor vehicle/non-motor vehicle classification), target counting by line/area (human/vehicle /non-motor vehicle classification), face detection, face capture, illegal parking detection, loitering detection, abandoned/missing object detection

Specification

Model	TD-5422E1-VT1
Thermal Module
Detector Type	12µm 256×192 Vanadium oxide uncooled focal plane detector
Response Waveband	8µm-14µm
NETD	≤50mK (@25°C, F#=1.0)
IRIS Type	Fixed Iris
Lens	3.2mm@F1.1	7mm@F1.0
Field of View(H×V)	56°×42.2°	24.8°×18.7°
Min. Focusing Distance	0.5 m	1.1m
Color Palettes	Black hot, White hot, iron oxide red, rainbow, etc.
DRI Distance Human (0.75m)	Detection: 133m(436ft) Recognition: 33m(108ft) Identification:17m(56ft)	Detection: 292m(958ft) Recognition: 73m(240ft) Identification:36m(118ft)
			DRI Distance Vehicle (2.3m)	Detection: 409m (1342ft) Recognition: 102m(335ft) Identification:51m(167ft)	Detection: 894m(2933ft) Recognition: 224m(735ft) Identification:112m(367ft)
Visible Light Module
Image Sensor	1/ 2.7" CMOS
Image Size	2592 × 1944
Electronic Shutter	1/3 s ~ 1 / 100000 s
Iris Type	Fixed Iris
Min. Illumination	0.02 lux@F1.6, AGC ON; 0 lux with IR 0.03 lux@F2.0, AGC ON; 0 lux with IR
			Lens	4mm@F1.6	8mm@F2.0
Field of View(H×V)	81°×56.7°	38°×27.5°
Wide Dynamic Range	120dB
BLC	Yes
HLC	Yes
Defog	Yes
Digital NR	2D/3D DNR
Video Compression	H.265 / H.264 / MJPEG
H.264 Compression Standard	Baseline Profile / Main Profile / High Profile
Bit Rate Type	VBR/CBR
Bit Rate	128Kbps~ 8Mbps
Resolution	Thermal: 720P (1280 × 720), D1, CIF, 480 × 240
	Optical: 5MP (2592 × 1944), 4MP (2592 × 1520), 2K (2560 × 1440), 3MP (2304 × 1296),1080P (1920 × 1080),720P (1280 × 720), D1, CIF, 480 × 240
			Main Stream	Optical: 60Hz: 5MP/4MP/2K/3MP/1080P/720P (1~30fps); 50Hz: 5MP/4MP/2K/3MP/1080P/720P (1~25fps)
Thermal: 256 × 192 (the resolution of output image is 720P/D1/CIF/480×240) (1~25fps)
		Sub Stream		Optical: 60Hz: 720P/D1/CIF (1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
Third Stream	Optical: 60Hz: D1/CIF/480×240(1~30fps); 50Hz: D1/CIF/480×240(1~25fps)
Dual Image Fusion	Yes
Temperature Overlay	Temperature can be overlaid on video stream
Image Settings	ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser
Audio Compression	G711A/U
ROI	8 regions; each ROI to be configured separately
Interfaces
Network	RJ 45
Video Output	No
Audio	1CH 3.5mm MIC/LIN in audio input; 1CH built-in speaker
Storage	Built-in micro-SD card slot; up to 256GB
Reset	Yes
RS 485	No
Alarm	1CH alarm input; 1CH alarm output
Functions
Temperature Range	-20°C~150°C (-4°F~302°F)
Temperature Accuracy	±8°C
Temperature alarm	Over temperature alarm, low temperature alarm
Temperature Measurement	10 rules in total (Point: up to 10; Line: 2, recommended; Area: 2, recommended)
Fire Detection	Dynamic fire detection, up to 10 fire points detectable
Remote Monitoring	Web browser/NVMS2.X/Mobile APP
Online Connection	Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS
Interface Protocol	ONVIF
Storage	Network remote storage; micro-SD card storage
Smart Alarm	Motion detection, SD card error, SD card full, IP address conflict, Cable connection, video exception, audio exception
Intelligent Analytics	Optical: region intrusion/entrance/exiting detection/line crossing detection (human/motor vehicle/non-motor vehicle classification), target counting by line/ area (human/motor vehicle/non-motor vehicle classification), face detection, illegal parking detection, loitering detection, abandoned/missing object detection Thermal: fire detection, temperature exception alarm, region intrusion/ entrance/ exiting detection/line crossing detection (human/motor vehicle classification)
			AI function can be enabled simultaneously on thermal and optical channels
			General Function	Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction
			Sound & Light Warning	White light flashing alarm and sound alarm supported
	PoE	Yes, IEEE802.3 af, class0
IR Distance	20~ 30m
Protection Grade	IP66
Others
Power Supply	DC12V / PoE
Power Consumption	< 9W
Operating Environment	Humidity: less than 95 % (non-condensing) -30 °C ~ 60 °C (-22°F~140°F)
			Certificate	CE, FCC
Environment Protection	Complies with Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH(EC1907/2006)
Dimensions (mm)	217.8 × 80.5 × 80.3
Weight (net)	Approx. 0.7KG
Installation	Ceiling mounting; Wall mounting

Резолюция: 4MP
Микрофон: Вграден микрофон
Вход за микрофон
Camera Power: DC12V
POE
Infrared: IR 20-30m
Storage: SD карта
Вид камера 2: Bullet
Вид камера: IPC
Технологии: Thermal
