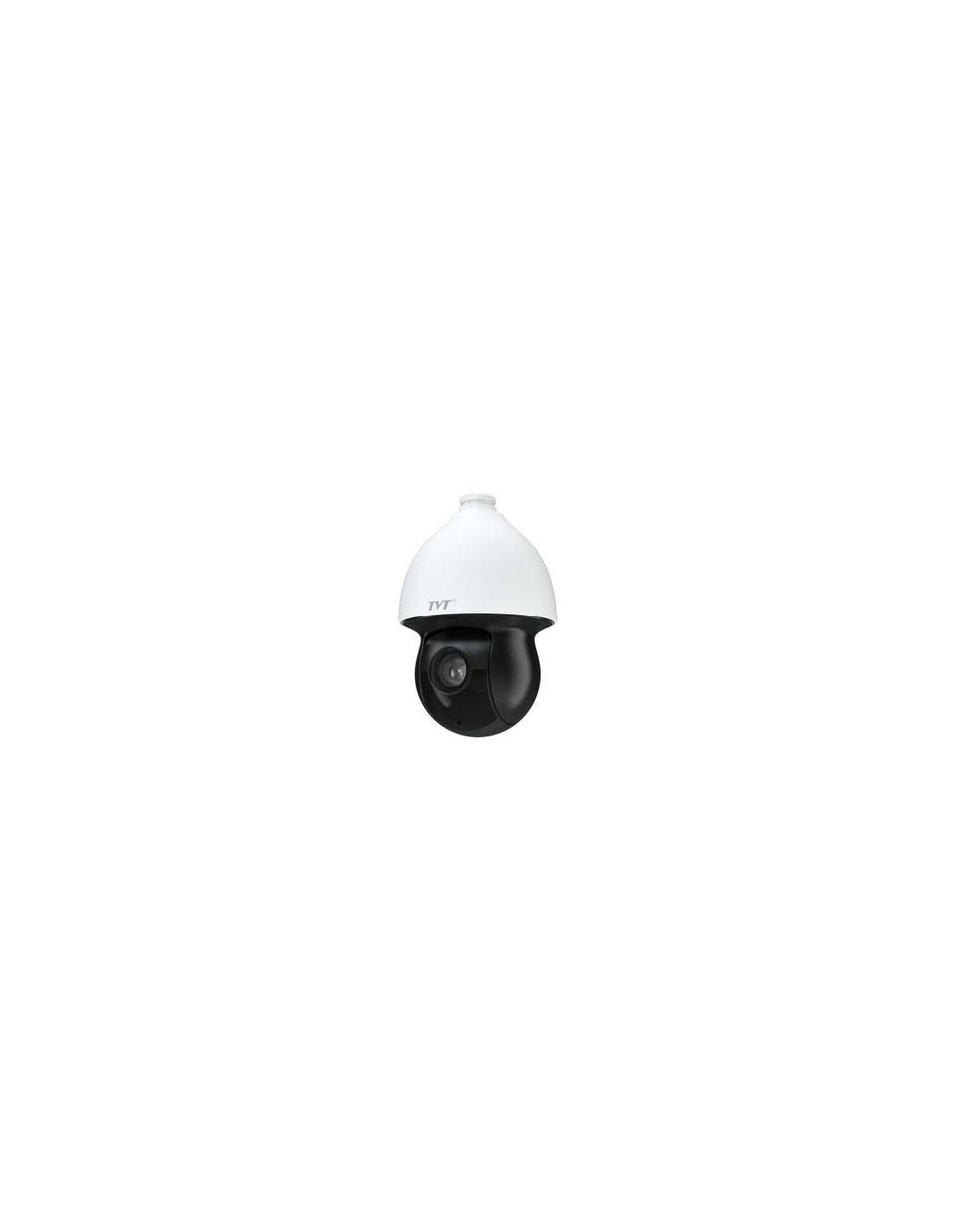

TD-8543IE3N(PE/40M/AR35) 4MP 40X IR Network Speed PTZ Camera
TVT Последни бройки в наличност
734,42 €
с ДДС
FeaturesUltra fast rotation and tracking speed, dual belts for longer life.Excellent low light performance Super long IR supplement light distance Deep-learning engine, support human/vehicles detection, auto-tracking IP66/IK10/6KV Strong protection,7x24 Hours outdoor harsh weatherStable supply-chain, long product life circleConfirms to data protection regulations of major countries. Camera ModuleImage sensor1/2.8" progressive scan CMOS image sensor, with BSI and NIR++,Dual GainMax resolution2560x1440Mini. IlluminationColor：0.005 Lux @ (F1.2，AGC ON)；B/W：0.001 Lux @(F1.2，AGC ON);0Lux with IRImage settingFlip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, etc. adjusted by clientShutter Speed60Hz: 1/30s – 1/30,000s@30fps;50Hz:1/25s~1/25,000s@
Features
Ultra fast rotation and tracking speed, dual belts for longer life.
Excellent low light performance
Super long IR supplement light distance
Deep-learning engine, support human/vehicles detection, auto-tracking
IP66/IK10/6KV Strong protection,7x24 Hours outdoor harsh weather
Stable supply-chain, long product life circle
Confirms to data protection regulations of major countries.
| Camera Module | |||||
| Image sensor | 1/2.8" progressive scan CMOS image sensor, with BSI and NIR++,Dual Gain | ||||
| Max resolution | 2560x1440 | ||||
| Mini. Illumination | Color：0.005 Lux @ (F1.2，AGC ON)；B/W：0.001 Lux @(F1.2，AGC ON);0Lux with IR | ||||
| Image setting | Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, etc. adjusted by client | ||||
| Shutter Speed | 60Hz: 1/30s – 1/30,000s@30fps;50Hz:1/25s~1/25,000s@25fps | ||||
| White Balance | Auto/Manual/Indoor/Outdoor | ||||
| Gain control | Auto/Manual | ||||
| Day & Night control | Auto/Manual ,time schedule. | ||||
| Iris control | Auto/Manual | ||||
| SNR | ≥52dB | ||||
| 3D DNR | Auto/Manual | ||||
| AE Enhancement | BLC, HLC, DWDR | ||||
| Digital Zoom | 16X | ||||
| Electronical Stabilizer | N/A for this version | ||||
| Privacy Mask | 4 areas, up to 8 mask per request. | ||||
| Picture overlay | Logo picture could be overlaid on video with 128x128pixels,24bits format | ||||
| OSD overlay | Max 15 characters/line, 8 lines, white or red font color | ||||
| Lens | |||||
| Focus length | f=4.5-180mm lens,40x optical zoom | ||||
| Zoom Speed | Approx. 5.2s (optical zoom, wide-tele) | ||||
| Field of View | H: 59.1° ~1.8°; V: 38.4° ~ 1.1° ; D: 68.9° ~ 2.1° (wide-tele) ±5% | ||||
| Image distance | Wide: 1.0m ~ INF; tele: 1.5m ~ INF | ||||
| Aperture Range | Max F1.2 | ||||
| Iris Type | DC_IRIS | ||||
| IRCut type | Removable IRCut filter | ||||
| DORI distance | Focus length | Detect | Observe | Recognize | Identify |
| f=4.5mm | 99.6m(326.8 f.t.) | 39.5m(129.7 f.t.) | 19.9m(65.4 f.t.) | 10m(32.7 f.t.) | |
| f=180mm | 3600m(8126.6f.t.) | 1429m(3250.7 f.t.) | 720m(1625.3f.t.) | 360m(812.7 f.t.) | |
| PTZ | |||||
| Pan Range | 360°endless | ||||
| Pan speed | Configurable, from 0.1~390°/s; Preset speed: 420°/s | ||||
| Tilt Range | From -25° to 155°,auto flip at 90° | ||||
| Tilt Speed | Configurable, from 0.1°~270°/s, Preset speed: 300°/s | ||||
| Proportional Zoom | Yes | ||||
| Preset | 360 | ||||
| Cruise | 8 cruises, up to 16 presets for each cruises | ||||
| Trace | 4 traces, record time over 3 minutes for each trace | ||||
| Power off memory | Support | ||||
| Action mode | Preset/Cruise/Trace/Auto Scan/Random Scan | ||||
| 3D Positioning | Support | ||||
| PTZ Position Display | Support | ||||
| Schedule Task | Preset/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot/ De-frost/Water Removal | ||||
| IR | |||||
| IR Distance | 350m (1148 f.t.) ,850nm IR | ||||
| Smart IR | Yes | ||||
| Network | |||||
| Main stream | 50Hz: 25fps: 2560x1440,1920×1080,1280×960,1280×720; 60Hz: 30fps: 2560x1440,1920×1080,1280×960,1280×720 | ||||
| Sub stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) | ||||
| Third Stream | 50Hz:25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) | ||||
| 60Hz:30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | |||||
| Video compression | H.265+/H.265/H.264+/H.264/MJPEG | ||||
| H.264 Standard | H.264/AVC codec BP/MP/HP, Level 5.1 | ||||
| H.265 Standard | H.265/HEVC codec MP, level 5.0 | ||||
| Video Bit Rate | 64 Kbps to 16Mbps | ||||
| Audio compression | G.711 A/U | ||||
| Audio Bit Rate | 64K bps | ||||
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE,P2P | ||||
| User / Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User | ||||
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, | ||||
| IEEE802.1x port-based network access control; IP address filtering | |||||
| API | ONVIF A/G/Q/S/T, support TVT SDK and third-party management platform | ||||
| Client | TVT N9000 1.4.7, TVT NVMS 2.0; and the third-party client, free iOS and Android App | ||||
| Web Browser | IE8-11 with plug-in; Edge, Chrome, Firefox with plugin free | ||||
| Smart Features | |||||
| Basic event | Motion detection, Video tampering alarm, Exception(Network disconnected, IP address conflict, SD full, SD error) | ||||
| Face recognize | Face detection & capturing, Max 17faces per scene. | ||||
| Road traffic | Vehicle detecting and tracking | ||||
| Smart Detection | Tripwire, Bi-directional tripwire, Illegal intrusion detection, Region entrance detection, Region exiting detection, etc. More VCA per request. | ||||
| Smart Tracking | support smart tracking of human or vehicle, manual/auto | ||||
| System Integration | |||||
| Alarm Interface | 1 Alarm input(Dry contact); 1 Alarm output | ||||
- Резолюция
- 4MP
- Camera Power
- DC12V
POE - Storage
- SD карта
- Вид камера 2
- PTZ
- Вид камера
- IPC
