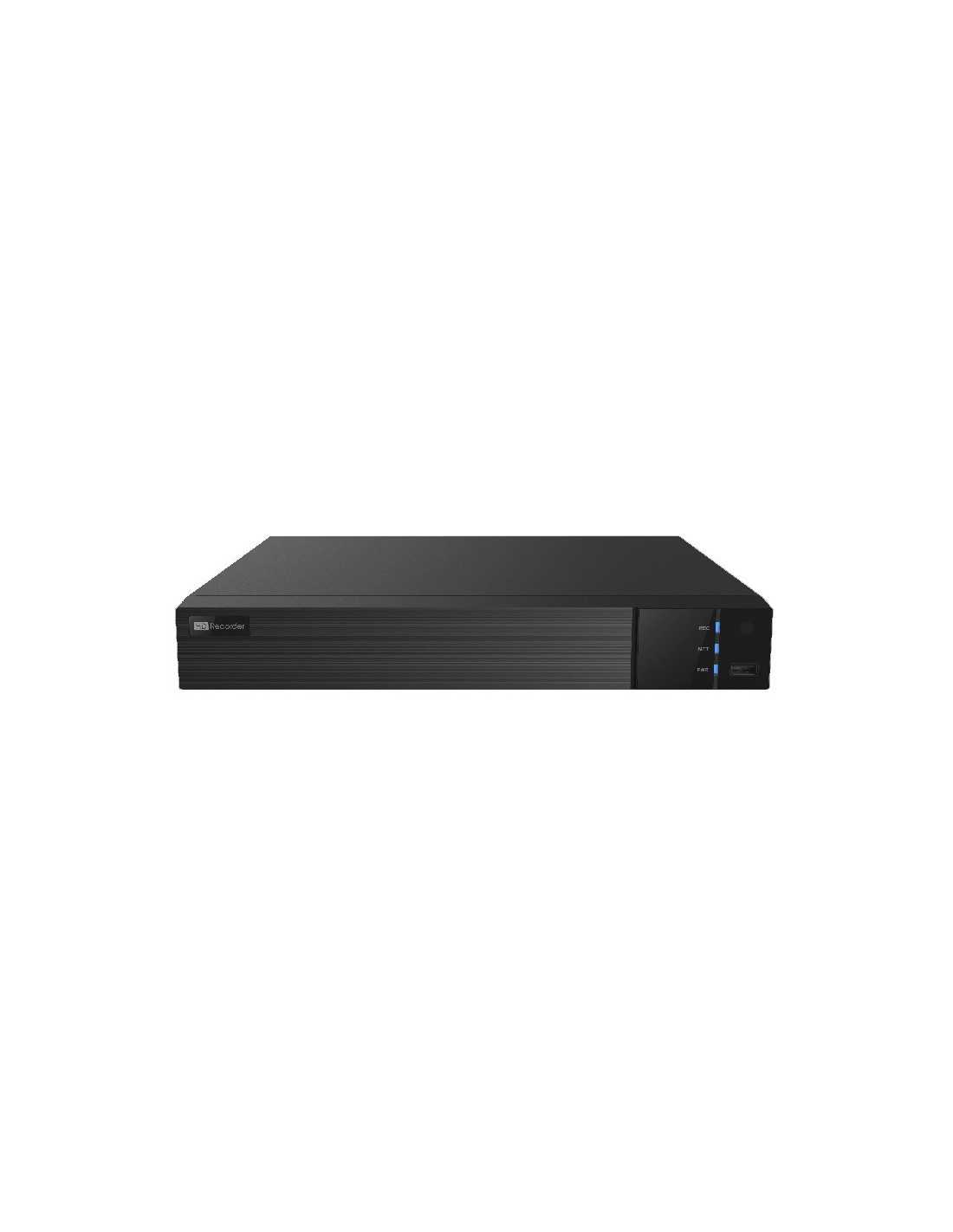

NVR TVT 16CH TD-3116H2-B2-B 112Mbps, 2xHDD

Name: NVR TVT 16CH TD-3116H2-B2-B 112Mbps, 2xHDD
Brand: TVT
SKU: 66774
Price: 259.2 EUR
Availability: InStock

Марка: TVT

Последни бройки в наличност

259,20 €

с ДДС

FeaturesSupport 16CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/720P/960H/DI/CIF IP video inputH.265S / H.265+ /H.265 /H.264 codingIntuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouseSearch: time slice, time, event, tag and smart searchSupport multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.Support POS information overlay on live view and playbackPlayback: 16CH simultaneous playbackExpress and flexible backup via USB, network and so onPentaplex: preview, record, playback, backup and remote accessDHCP, DDNS, PPPoE network protocolRemote control via Web or CMS: preview, playback, backup, PTZ and configurationDual stream technology for

Описание
Детайли за продукта

Features

Support 16CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/720P/960H/DI/CIF IP video input

H.265S / H.265+ /H.265 /H.264 coding

Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse

Search: time slice, time, event, tag and smart search

Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.

Support POS information overlay on live view and playback

Playback: 16CH simultaneous playback

Express and flexible backup via USB, network and so on

Pentaplex: preview, record, playback, backup and remote access

DHCP, DDNS, PPPoE network protocol

Remote control via Web or CMS: preview, playback, backup, PTZ and configuration

Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device

Multi-user online simultaneously

Authorization management, log view and device status view

4K ultra high-resolution output, true high-resolution display

Support NAT function and QR Code scanning by mobile phones

Powerful mobile surveillance by smart phones with iOS and Android OS

Specification

Model		TD-3116H2-B2-B
System	OS	Embedded Linux
Video	Network Input	16CH IPC input
	Network Input Resolution	8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
	Output	HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768
	Output		Screen Display Mode	1/4 /6/8/9/13/16
	Compression	H.265S / H.265+ / H.265 / H.264
	Audio	Network Input	16 CH IPC audio input
Local Input		RCA × 1 (for two-way audio)
Local Output		RCA × 1
Compression		G.711(U/A)
Record	Resolution	8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
Record	Frame Rate	NTSC:30fps; PAL:25fps
Playback	Simultaneous Playback	Max. 16 CH
	Search	Time slice / time / event / tag search
	Smart Search	Highlighted color to display the camera record in a certain period of time, different colors refer to different record events
	Smart Search		Function	Play, pause, FF, FB, digital zoom, etc.
	Decoding Capability	Live View/ Playback	1×8MP@30fps; 6×1080P@30fps
Alarm	Mode	Manual, sensor, motion, exception, smart events
	Input	4CH alarm input; IPC alarm input supported
	Output	1CH alarm output; IPC alarm output supported
	Triggering	Record, snap, preset, e-mail, etc.
Network	Interface	RJ 45 1000Mbps × 1
	Interface	RJ 45 1000Mbps × 1	Protocol	TCP / IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, SMTP, HTTPs, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP, ONVIF
	Incoming/ Outgoing Bandwidth	160/160(Mbps)	Protocol
		*When the AI function of the IPC is enabled, the actual incoming bandwidth (max.bitrate) is more than the set value in the NVR.
			Client Connection	Max. 64 users' access
	Face	Face Detection Performance (AI by IPC)	16 CH
		Face Detection Performance (AI by Device)	2 CH
		Face Match Performance	No
Statistical Graph of Information		Bar graph
Statistical Mode of Information		Statistics by day, week, month, quarter as well as customized time period
Video Structure Analysis	Human/Vehicle Classification (AI by IPC)	16 CH
	Human/Vehicle Classification (AI by Device)	2 CH
	Human/Vehicle Attribute Analysis	Yes (AI by IPC)
Other Functions	Fisheye	Supports fisheye dewarping via Web Client and mobile APP
Other Functions	Plate Recognition (AI by IPC)	Yes
Mobile Device	OS	iOS, Android
Storage	HDD Interface	SATA3.0 × 2, max 10T per HDD
Backup	Local Backup	U disk, USB mobile HDD
Backup	Network Backup	Yes
Port	USB	USB 2.0 × 2
	RS 485	Yes (full-duplex); connect to PTZ or keyboard
	Remote Controller	Optional
Others	Power Supply	DC 12V/3A
	Consumption	≤ 10W (without HDD)
	Dimensions (mm)	380 × 268 × 45 (W × D × H)
	Working Environment	-10 ～ 50°C, 10% ～ 90% humidity
	Certificate	CE, FCC
	Environmental Protection	Complies with Directive EU RoHS, REACH and WEEE
