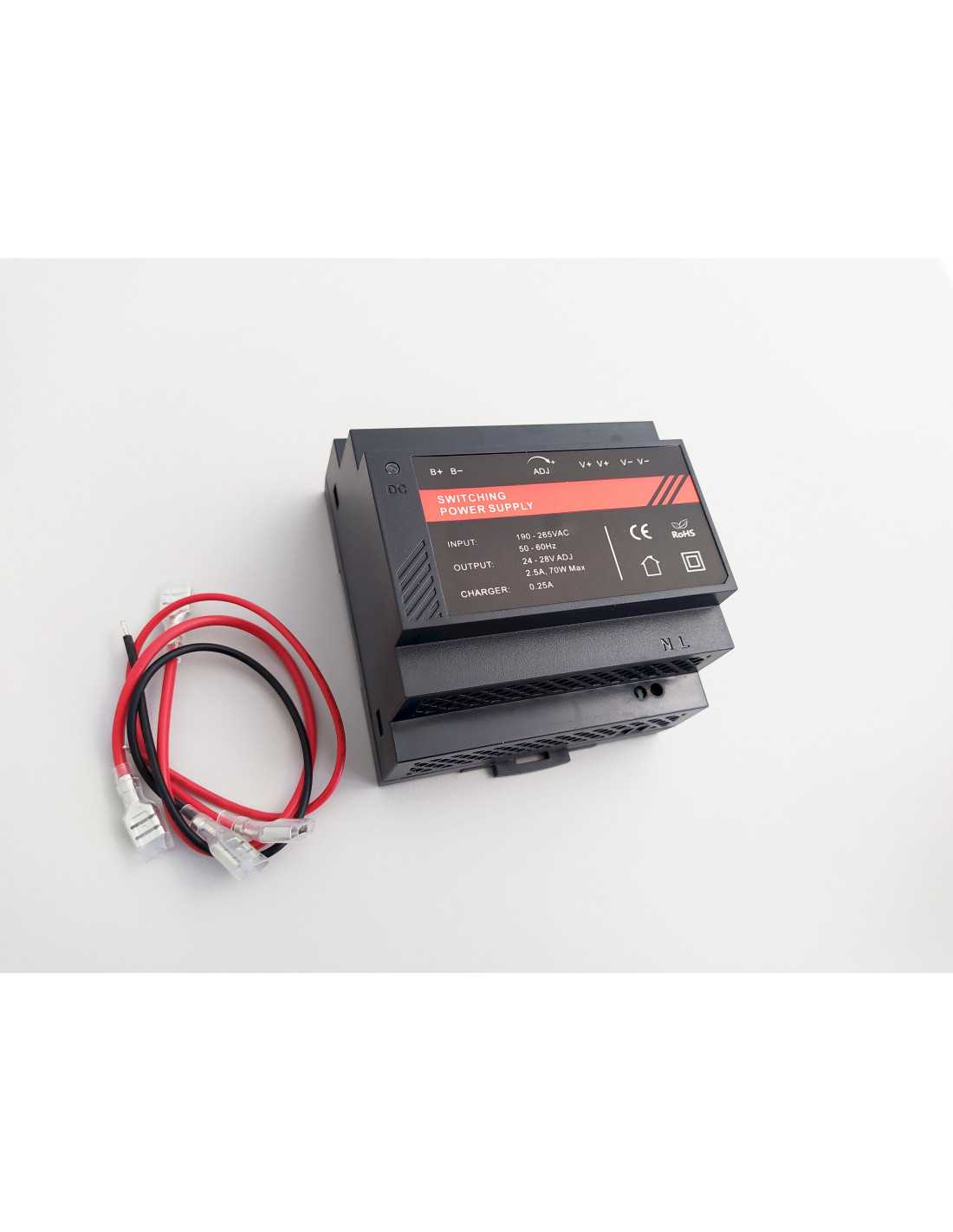

Захранване 24V/2.5A, UPS функция, за DIN шина

INPUT

Voltage Range

190 - 265VAC

Frequency Range

50 - 60Hz

OUTPUT

Voltage (AC Mode)

24-28V ±2%

Voltage (Battery Mode)

Same as battery voltage

Rated Current

2.5A

Rated Power (Max.)

70W (with maximum 250mA charging current)

Efficiency (Typ.)

>86%

Ripple & Noise

<240mVp-p

Output Channel

2 Channels

CHARGING

Voltage

22-27.6V ±2%

Current

250mA (max.)

Constant voltage mode, charge current decreases when battery voltage increases.

PROTECTION

Input

2A / 250VAC fuse

Overload

3A ±5%

Hiccup mode, recovers automatically after fault condition is removed.

Overvoltage

Hiccup mode, recovers automatically after fault condition is removed.

Battery Low Voltage

21V ±2%

PSU shuts down until AC power is reconnected

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

Temperature

Working: -20 - 45℃

Storage: -30 - 80℃

Humidity

Working: 20 - 80%RH

Storage: 10 - 90%RH

LED INDICATOR

Green

On

AC supplies

Red

On

Battery supplies

SAFETY & EMC

EMC Standards

EN 55022: 2010, EN 55024: 2010, EN 61000-3-2: 2014, EN 61000-3-3: 2013

LVD Standards

EN 62368-1-2014-A11-2017
