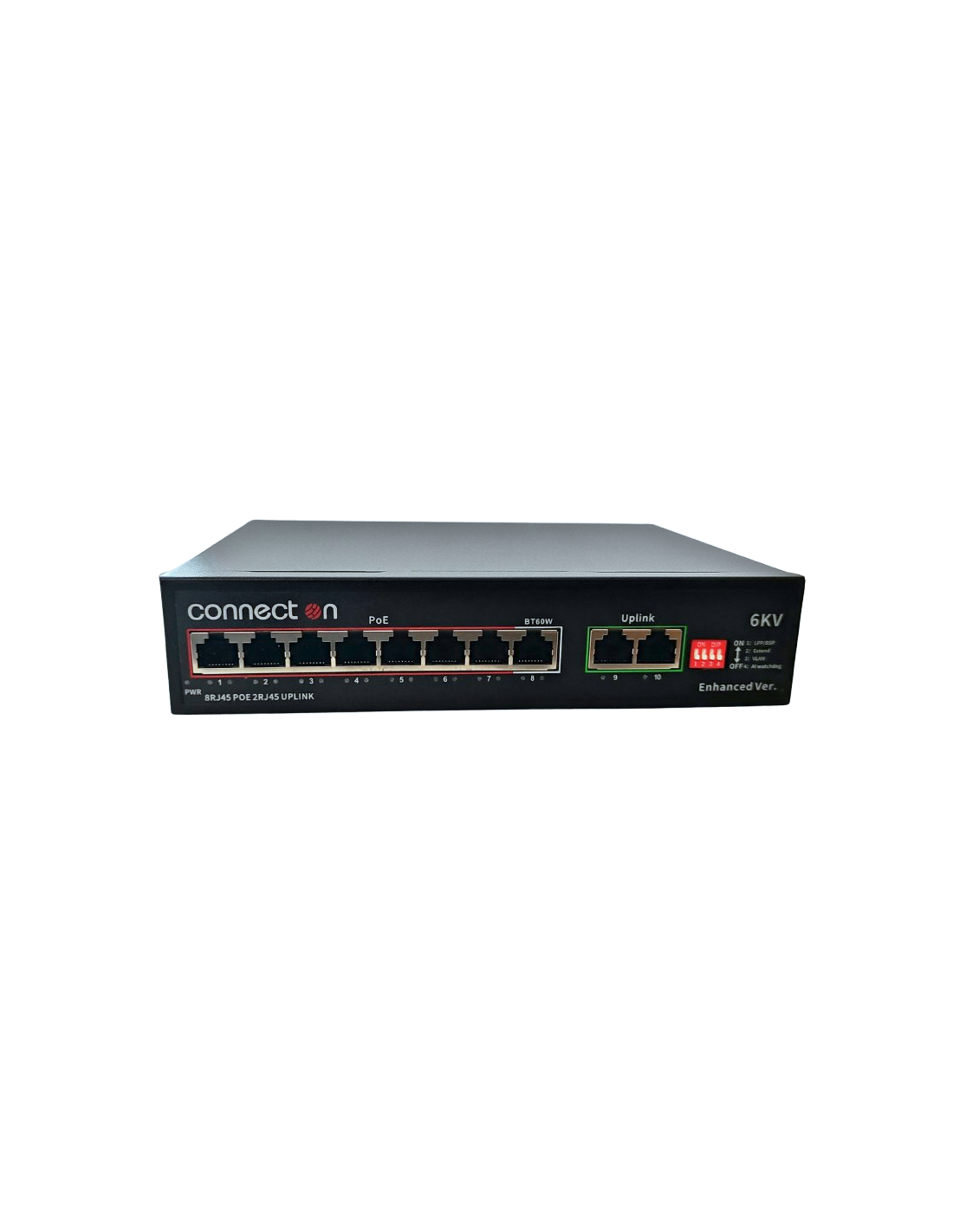

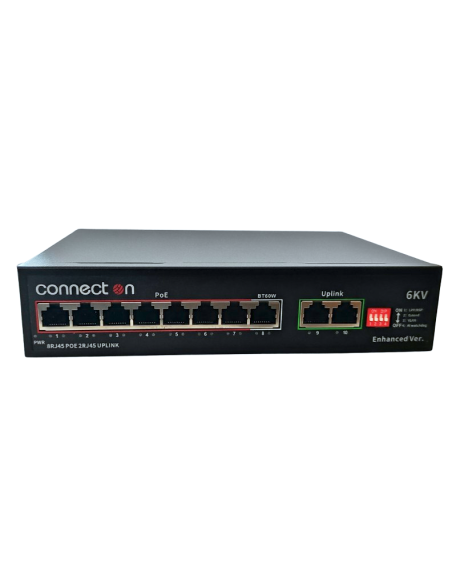

Hi-PoE Суич 10/100, 8 ports + 2 Uplink, 2.0Gbps IEEE802.3af/at, 120W, 250m

Product Name

8 Ports Hi-POE Switch(8+2)

Data Pin

1/2+,3/6-

Power Supply Type

Build in,  1/2+,3/6

Max PoE Output

1-7th ports:30W

Max PoE Output

8^th port:60W

Connector

8*10/100Mbps POE port,2*10/100Mbps uplink port

Network Medium

Cat5 (UTP) or more

Technology

Network Standards

IEEE 802.3i 10BASE-T    IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control   IEEE 802.3af Power over Ethernet

PoE power

30W 1-7th ports(IEEE802.3af/at)

60W 8^th port(IEEE802.3af/at/bt)

Wiring: Data & power provided over pairs 1/2 and 3/6

Processing types

Store-and-forward

Half-duplex back pressure and IEEE 802.3x full-duplex flow control

Address database Table Size

1K MAC address

Backboard Bandwidth

2Gbps

Network Latency

Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission

Power

Input

AC 110-240V, 50/60 Hz

Overload current protection

Present

Mechanical

Casing

Metal

Installation

Desktop

Interface

LED Indicators

System: Power

Per port: Link, PoE active

Environment specification

Operating temperature

-10-55℃

Storage temperature

-40-70℃

Operating humidity

90% maximum relative humidity, non-condensing

Storage humidity

95% maximum relative humidity, non-condensing

Regulatory Approval

Certificate

CE/CCC

Warranty

2 years

Dimensions

202*140*45mm(L*W*H)

Weight

1Kg
