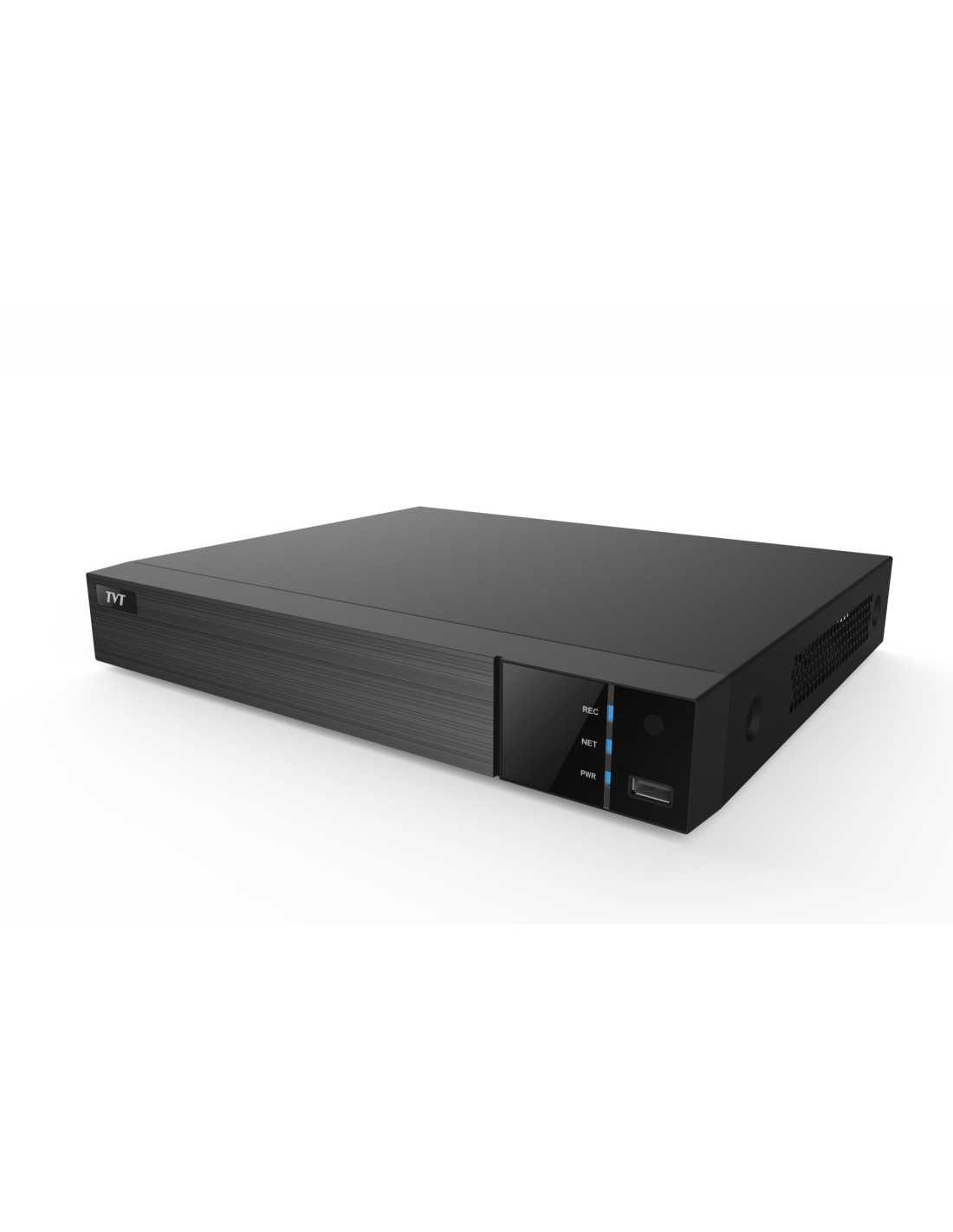

DVR TVT 4CH Hybrid TD-2104NS-HC-H, +2CH IPC

Name: DVR TVT 4CH Hybrid TD-2104NS-HC-H, +2CH IPC
Brand: TVT
SKU: 66781
Price: 68.4 EUR
Availability: InStock

Марка: TVT

Последни бройки в наличност

68,40 €

с ДДС

Features4/8CH DVR supports TVI / AHD/CVI 5MP/4MP/1080P/720P/WD1 video input16 CH DVR supports TVI / AHD/CVI 5MP/4MP/1080P video input4 / 8 / 16 CH DVR supports 2 / 4 / 8 CH 5MP / 4MP / 3MP /1080P / 960P /720P IP video input by default4CH DVR: 4CH analog video input can be switched to 4CH IP video input 8CH/16CH DVR: 8 analog video input can be switched to 8CH IP video input Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rateIntuitive and user-friendly Graphics User Interface (GUI), window style operation by mouseMulti-mode recording: manual / timed / motion / AI recordingPlayback: 4 / 8 / 16 CH simultaneously playbackSearch: time slice, time, event, tag searchExpress and flexible backup via USB, netwo

Описание
Детайли за продукта

Features

4/8CH DVR supports TVI / AHD/CVI 5MP/4MP/1080P/720P/WD1 video input

16 CH DVR supports TVI / AHD/CVI 5MP/4MP/1080P video input

4 / 8 / 16 CH DVR supports 2 / 4 / 8 CH 5MP / 4MP / 3MP /1080P / 960P /720P IP video input by default

4CH DVR: 4CH analog video input can be switched to 4CH IP video input

8CH/16CH DVR: 8 analog video input can be switched to 8CH IP video input

Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate

Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse

Multi-mode recording: manual / timed / motion / AI recording

Playback: 4 / 8 / 16 CH simultaneously playback

Search: time slice, time, event, tag search

Express and flexible backup via USB, network and so on

Pentaplex: preview, record, playback, backup and remote access

DHCP, DDNS, PPPoE network protocol

Remote control via Web or CMS: preview, playback, backup, PTZ and configuration

Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device Authorization management, log review and device status review

Support 1080P output, true high-resolution display

Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

Support NAT function and QR Code scanning by mobile phones

Powerful mobile surveillance by smart phones with iOS and Android OS

Specification

Model		TD-2104NS-HC	TD-2108NS-HC	TD-2116NS-HC
System	OS	Embedded Linux
Video	Analog Video Input	BNC × 4	BNC × 8	BNC × 16
		BNC interface (1.0Vp-p; 75Ω)
		TVI/ AHD/CVI: 5MP/ 4MP/ 1080P/ 720P/ WD1
	IP Video Input	2CH (up to 6CH)	4CH (up to 12CH)	8CH (up to 16CH)
		Up to 5MP@25fps	Up to 5MP@30fps	Up to 5MP@30fps
	Total Input	6CH	12CH	24CH
	Output	HDMI × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768
		VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768
		BNC × 1: CVBS (used as the main or spot output)
	Compression	H.264/H.265
	Multi-screen Display	1/4/6/9	1/4/6/8/9/13/16	1 /4/6/8/9/13/16/25
Audio	Input	RCA × 1
	Output	RCA × 1 (linear, 600Ω)
	Two-way audio	Take up channel one audio input
	Compression	G.711(U/A)
Record	Resolution	5MP Lite/ 4MP Lite/ 1080P/ 1080P Lite/ 720P/ WD1
	Frame Rate	Analog Channel: 5MP Lite :10fps;
		4MP Lite/1080P: 12fps (PAL)/15fps (NTSC);
		1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC)
		IP Channel: 25fps (PAL)/30fps (NTSC)
	Bit Rate	32Kbps ~ 4Mbps	32Kbps ~ 4Mbps	32Kbps ~ 5Mbps
	Mode	Manual, timer, motion, smart event
Playback	Playback	4CH	8CH	16 CH
	Search	Time slice / time / event / tag search
	Smart Search	Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
	Function	Play, pause, FF, FB, digital zoom, etc.
Alarm	Mode	Manual, motion, exception, smart event
	Input	No
	Output	No
Network	Interface	RJ 45 100Mbps × 1
	Protocol	TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
	Incoming Bandwidth	16Mbps	32Mbps	32Mbps
	Outgoing Bandwidth	40Mbps	60Mbps	80Mbps
	Client Connection	Max. 5 users access	Max. 5 users access	Max. 10 users' access
Mobile Device	OS	iOS, Android
Storage	HDD	SATA × 1, up to 10TB
Backup	Local Backup	U disk, USB mobile HDD
	Network Backup	Yes
Port	RS 485	RS 485 × 1 (half-duplex)
	USB	USB 2.0 × 2 (in the rear panel)
	Remote Controller	Optional
Others	Power Supply	DC12V / 1.5A	DC12V / 2A	DC12V / 3A
	Consumption	≤5W (without HDD)	≤8W (without HDD)	≤10W (without HDD)
	Dimensions(mm)	255× 222× 42(W × D × H)		255× 234× 42 (W × D × H)
	Working Environment	-10~50°C, 10%~90% (humidity)
	Certificate	CE, FCC
	Environmental Protection	Comply with Directive EU RoHS, WEEE, REACH
