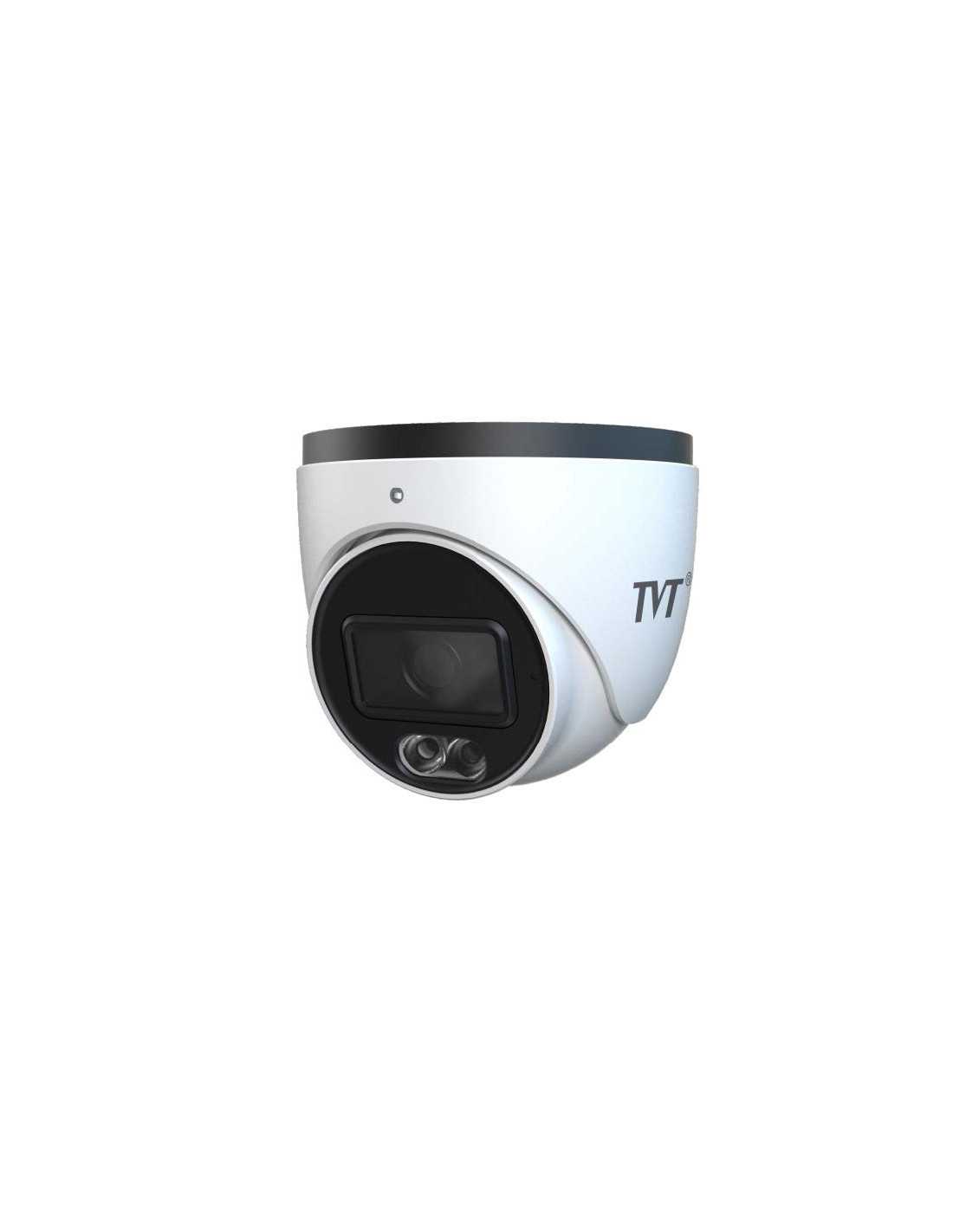

Камера TVT IPC 2MP Full Color TD-9524S4-C(D/PE/AW2), 3.6mm Turret
TVT Последни бройки в наличност
59,51 €
с ДДС
FeaturesH.265+ /H.265 /H.264+ /H.264/MJPEG codingMax. resolution:2MP (1920 × 1080)Fixed Lens：3.6mmAuto day/night switch3D DNR, HWDR, HLC, BLC, etc.ROI codingSupport smart supplement light20~30m white light view distance; 20~30m IR view distanceDC12V/PoE power supplyIP 67 ingress protectionSupport three streamsSupport remote monitoring by smart phones& tablet PCs with iOS and Android OSSupport P2P functionSupport SMDSupport line crossing detection, region intrusion detection, abandoned/missing object detection, video exception detectionSpecificationModelTD-9524S4-CCameraImage Sensor1 / 2.8 "CMOSImage Size1920×1080Electronic Shutter1/3s ~ 1 / 100000sIris TypeFixed IrisMin. Illumination0.008 lux @F1.6, AGC ON; 0 lux with illumination onLens3.6mm@F1.6, H
Features
H.265+ /H.265 /H.264+ /H.264/MJPEG coding
Max. resolution:2MP (1920 × 1080)
Fixed Lens：3.6mm
Auto day/night switch
3D DNR, HWDR, HLC, BLC, etc.
ROI coding
Support smart supplement light
20~30m white light view distance; 20~30m IR view distance
DC12V/PoE power supply
IP 67 ingress protection
Support three streams
Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
Support P2P function
Support SMD
Support line crossing detection, region intrusion detection, abandoned/missing object detection, video exception detection
Specification
| Model | TD-9524S4-C | |||
| Camera | ||||
| Image Sensor | 1 / 2.8 "CMOS | |||
| Image Size | 1920×1080 | |||
| Electronic Shutter | 1/3s ~ 1 / 100000s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.008 lux @F1.6, AGC ON; 0 lux with illumination on | |||
| Lens | 3.6mm@F1.6, Horizontal FoV:89°; Vertical FoV:47.5°; Diagonal FoV:104° | |||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Digital NR | Yes | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264/ MJPEG | |||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
| Resolution | 1080P (1920 × 1080), 720P (1280 × 720), D1, VGA (640× 480), 480× 240, CI | |||
| Main Stream | 1080P/720P (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Sub Stream | D1/VGA/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Third Stream | D1/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Bit Rate | 64 Kbps ~ 6 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| Audio Compression | G711A/U | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ45 | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH built-in MIC | |||
| Storage | Built-in micro-SD card slot, up to 256GB | |||
| Reset | Yes | |||
| Functions | ||||
| Remote Monitoring | Web browser /TVT NVR/NVMS2.X/Mobile APP | |||
| Web Browser | IE (plug-in required)/Google Chrome/Edge/Firefox/Safari | |||
| Online Connection | Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage; micro-SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card full, SD card error | |||
| Smart Event | Video Exception (scene change, video blur and abnormal color detection), line crossing /region intrusion detection (human/motor vehicle/non-motor vehicle classification), abandoned/missing object detection | |||
- Резолюция
- 2MP
- Микрофон
- Вграден микрофон
Вход за микрофон - Camera Power
- DC12V
POE - Camera Product Line
- Full Color Series
- Infrared
- IR 20-30m
- Lens
- 3.6mm
- Storage
- SD карта
- Вид камера 2
- Turret
- Вид камера
- IPC
- Технологии
- Dual Light
