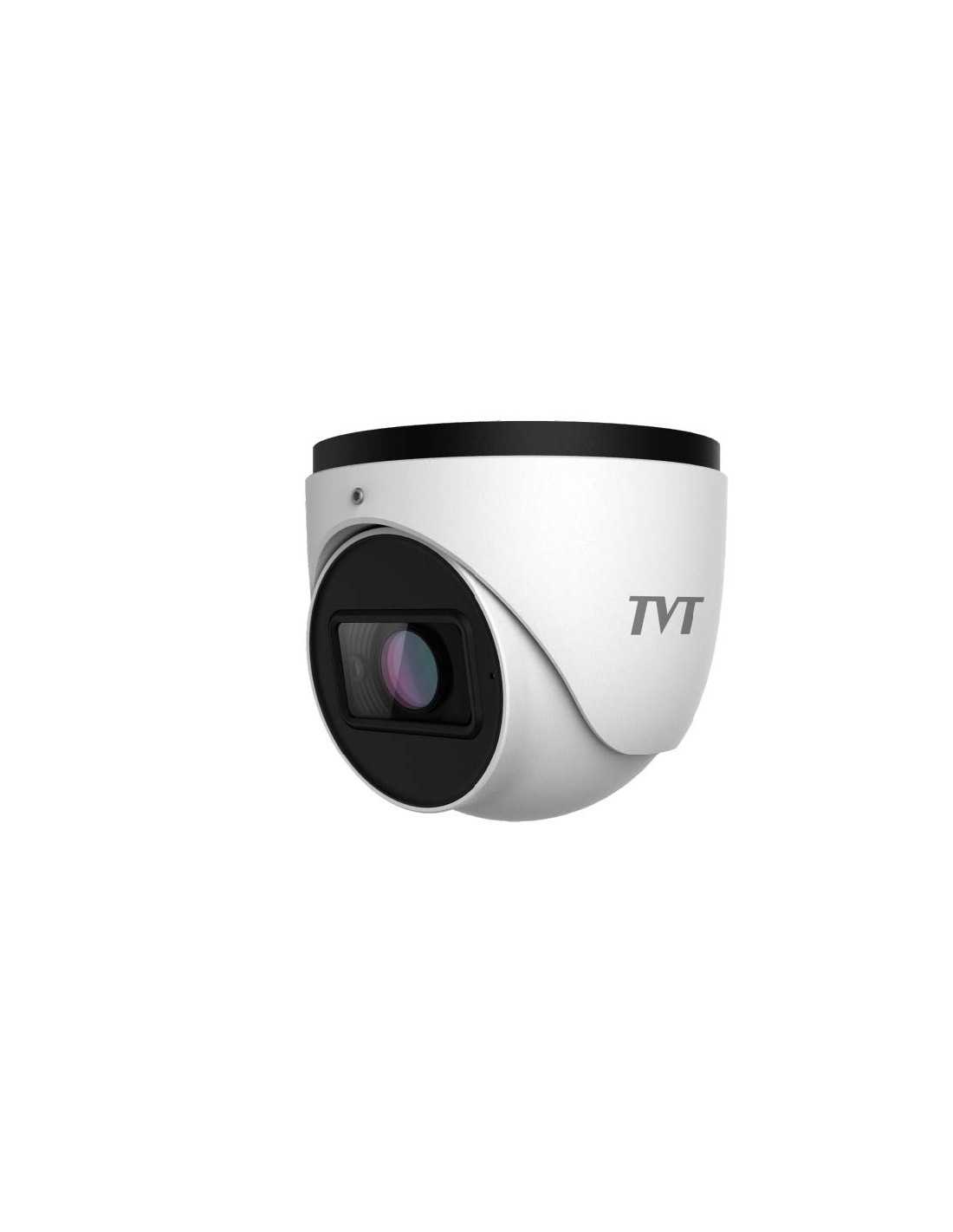

Камера TVT IPC 6MP TD-9565E3B-A(D/AZ/PE/AR3) 2.8~12mm Vario

Name: Камера TVT IPC 6MP TD-9565E3B-A(D/AZ/PE/AR3) 2.8~12mm Vario
Brand: TVT
SKU: 66772
Price: 187.13 EUR
Availability: OutOfStock

Марка: TVT

Изчерпана наличност

187,13 €

с ДДС

FeaturesH.265+/H.265/H.264+/H.264/MJPEG codingMotorized lens：2.8~12mmMax. resolution: 3296 × 1856ICR auto switch, true day / night vision30 ~ 50m IR night view distance3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI codingSupport image distortion correctionBuilt-in micro-SD card slot, up to 256GBDC12V/PoE power supplyIP 67 ingress protectionSupport three streamsSupport remote monitoring by smart phones & tablet PCs with iOS and Android OSIntelligent analyticsSpecificationModelTD-9565E3B-ACameraImage Sensor1 / 2.5 "CMOSImage Size3296 × 1856Electronic Shutter1 / 4 s ~ 1 / 100000 sIris TypeDC IrisMin. Illumination0.008 lux@F1.6, AGC ON; 0 lux with IRLens2.8~12mm@F1.6, H.FoV: 108°~36°; V.Fov: 57°~20°;D.FoV: 129°~42°FocusMotorizedLens MountΦ14Day & Ni

Model	TD-9565E3B-A
Camera
Image Sensor	1 / 2.5 "CMOS
Image Size	3296 × 1856
Electronic Shutter	1 / 4 s ~ 1 / 100000 s
Iris Type	DC Iris
Min. Illumination	0.008 lux@F1.6, AGC ON; 0 lux with IR
Lens	2.8~12mm@F1.6, H.FoV: 108°~36°; V.Fov: 57°~20°;D.FoV: 129°~42°
Focus	Motorized
Lens Mount	Φ14
Day & Night	ICR
Wide Dynamic Range	120dB
BLC	Yes
HLC	Yes
Defog	Yes
S/N ratio	≥50dB
Digital NR	3D DNR
Angle Adjustment	Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
Video Compression	Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
					H.264 Compression Standard	Baseline Profile/Main Profile/High Profile
					Resolution	6MP (3296×1856), 6MP (3200×1800), 5MP (2880×1624), 4MP (2688×1520), 1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), CIF, 480×240
Main Stream	6MP/5MP/4MP/1080P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Sub Stream	720P/D1/VGA/CIF/480×240(60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Third Stream	D1/CIF/480×240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Bit Rate	64 Kbps ~ 10 Mbps
Bit Rate Type	VBR / CBR
Audio Compression	G711A / U
Image Settings	ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
					ROI	Each ROI to be configured separately
Intelligent Analytics (Smart Events)
Smart Event	Line crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/ missing object detection
Statistics	Target counting by line/area, heat map
Exception Detection	Scene change, video blur and abnormal color detection, audio exception
Face Detection	Face detection and face capture
Video Metadata	Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature
					DORI Distance
Lens	Detect	Observe	Recognize	Identify
2.8~12mm(W)	66m(218ft)	27m(87ft)	13m(44ft)	7m(23ft)
2.8~12mm(T)	204m(669ft)	82m(269ft)	41m(135ft)	20m(66ft)

Камера TVT IPC 6MP TD-9565E3B-A(D/AZ/PE/AR3) 2.8~12mm Vario

Features
